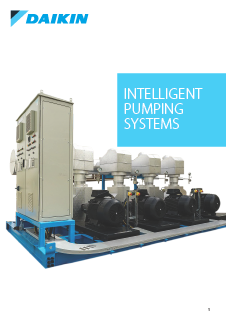

Pre-Fabricated Modular Solutions Leaflet_HR
PDF | 7.74MB
Benefits
› Versatile designs
› High quality construction
› Simplified installation with less onsite labor
Optimized pump systems for chilled & condenser water loops
Directly Interface with the Chiller built-in plant manager. Single point responsibility for Chiller + Controls + Pumps Backed up by Daikin Warranty and Service Network.
BENEFITS
1. Single electrical connection
2. Simplified installation, startup and commisioning.
3. Compact footprint
4. Integrated control & Instrumentation
5. Fully adaptable to your application
STANDARD DESIGN INCLUDES:
• Base mounted, end suction pumps
• Daikin Intelligent Pump Manager Controller
• Suction Diffusers
• Triple duty valves
• Manual Gauges
• Pump common discharge header
• Pump common suction header
• Lifting lugs
TECHNICAL DATA
All Daikin skids are assembled on a steel base with or without enclosure. They arrive on site pre-wired, pre-piped and pre-commissioned, eliminating the scheduling challenges and cost overruns of a site-built system.
| System Conditions | Range |
| System head (bars) | 3 to 6 |
| System flow rate (Ips) | up to 380 |
| Number of pumps | 2 to 5 |
| Motor power (kW) | 10 to 200 |
| Optional Components |
| Vertical inline or split case pumps |
| Variable frequency drives (VFD) |
| Power distribution |
| Intelligent Pump Manager & instrumentation |
| Air separator |
| Pressurization Unit |
| Expansion tank |
| Suction diffusers |
| Check valves |
| Chemical pot feeder |
| Glycol feeder |
| Buffer tank |
| Plate Heat Exchanger |
| Inertia Base |
| Insulation |
| Cladding |
Standard Pump Skid
Pump skid with / Optional components options
SKID DIMENSIONS
*Dimensions shown for standard skid systems
| Header Size (mm) | L (m) | W (m) | H (m) |
| 150 | 2.1 | 2.6 | 2.3 |
| 200 | 2.1 | 2.6 | 2.3 |
| 250 | 2.5 | 2.7 | 2.5 |
| 300 | 2.5 | 3.3 | 2.5 |
2-Pump Systems
| Header Size (mm) | L (m) | W (m) | H (m) |
| 200 | 3 | 2.6 | 2.3 |
| 250 | 3.5 | 2.6 | 2.3 |
| 300 | 3.7 | 2.7 | 2.5 |
| 350 | 3.7 | 2.7 | 2.5 |
| 400 | 3.7 | 3.3 | 2.5 |
3-Pump Systems
| Header Size (mm) | L (m) | W (m) | H (m) |
| 250 | 4 | 2.6 | 2.3 |
| 300 | 4.5 | 2.6 | 2.3 |
| 350 | 4.5 | 2.6 | 2.3 |
| 400 | 4.9 | 2.7 | 2.5 |
| 450 | 4.9 | 3.3 | 2.5 |
4-Pump Systems
